Hanse 37. Self-tacking jib. There's the usual block on the clew, a block on the traveler, then the sheet goes up to a sheave about 15 feet up the mast, back down inside the mast, out the bottom, through another block then back to clutch and winch... Why the hell does it go up the mast then back down and exit at the base? Lots of friction, makes furling etc very difficult. Anybody know anything bout this? Thanks!
Here's a ridiculous question for ye...
- Thread starter munt
- Start date
ryley
Super Anarchist
Not a ridiculous question at all. the reason they did that is so that you can sheet to a single point with a jib on a traveler. By going up to the sheave on the mast, it allows enough room to get between the sheet and the sail, and it allows the sail to travel from one side to the other without changing the sheet angle.
What you could do instead if you can lead the sheet under the track is to put a block ahead of the track on centerline, then lead it back to the clutch under the track. This allows the sheet to still be sheeted on centerline but without having to make the crazy turn up into the mast and back down.
Here's a Freedom 40/40 with what I'm describing (ignore the track extending past the cabintop):
What you could do instead if you can lead the sheet under the track is to put a block ahead of the track on centerline, then lead it back to the clutch under the track. This allows the sheet to still be sheeted on centerline but without having to make the crazy turn up into the mast and back down.
Here's a Freedom 40/40 with what I'm describing (ignore the track extending past the cabintop):
Essex
Super Anarchist
Presumably so the sheet can lead fair from any position the jib trav is in.
- Thread starter
- #4
Thanks Ryley, but I've sailed a quadrulion multis with self-tacking jibs and never seen such nonsense. Is this all in the name of only having one sheet? Wouldn't it be better to increase the number of blocks and sheet like you find on any modern multi?
Soling jib sheet is lead right up to the forestay fitting similar reasons.
Ideally for self tacking you want the track to curve around the lead block so that the car position and sheet tension can be adjusted separately. If you don't do this then there is a risk that as you add sheet tension you will limit the sheeting angle.
Ideally for self tacking you want the track to curve around the lead block so that the car position and sheet tension can be adjusted separately. If you don't do this then there is a risk that as you add sheet tension you will limit the sheeting angle.
LB 15
Cunt
It is for the same reason that toilets in Deutschland have a little shelf so they can inspect their turds. Germans are weird.
mathystuff
Super Anarchist
- 1,251
- 886
It's called a Flachspüler, mate.

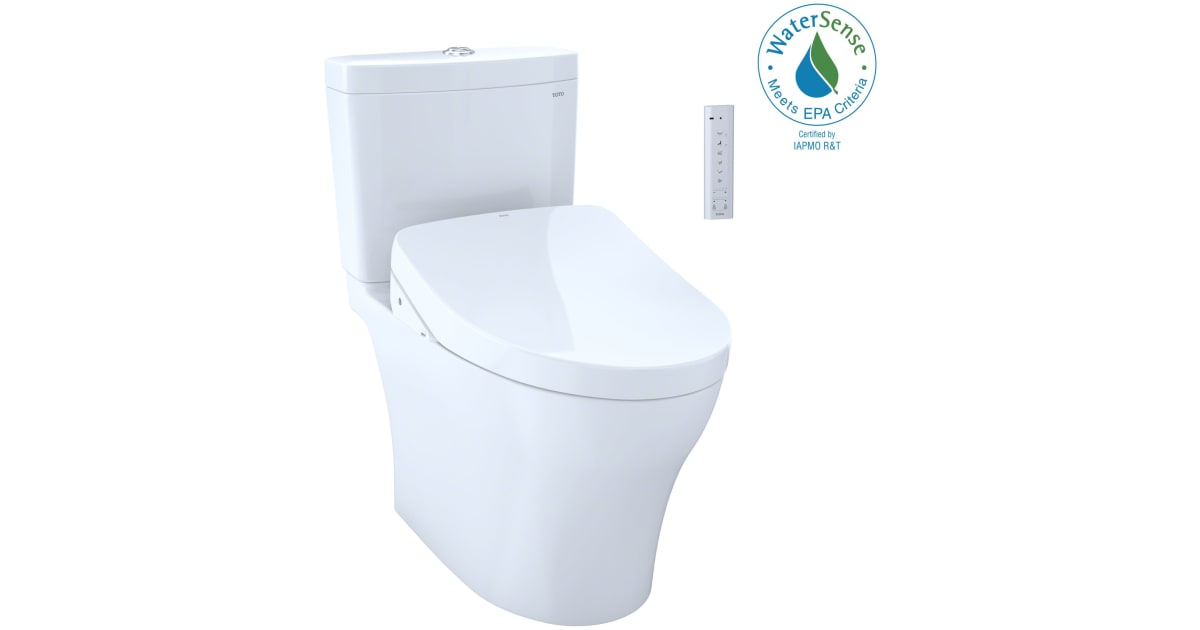

TOTO MW4463056CEMGN#01 Aquia IV 0.9 / 1.28 GPF Dual Flush | Build.com
Save on the TOTO MW4463056CEMGN#01 from Build.com. Low Prices + Fast & Free Shipping on Most Orders. Find reviews, expert advice, manuals, specs & more.
www.build.com
Yes, I've seen these little shelves and wondered about them
umm... I'm gonna need more information before I accept this explanation. I kind of figured it was so you didn't splash yourself with a long drop into standing water.
Somebody Else
a person of little consequence
It's a "health" thing.
The health of your turd is indicative of the overall health of your entire alimentary canal and indeed, your over-all body health. We are ignoring the whole mental health issue here concerning playing with your poop.
duncan (the other one)
Super Anarchist
and here I was thinking Lemmiwinks was a turd inspector.
LB 15
Cunt
I thought it was called Scheisse?
LB 15
Cunt
Either way, both Hanse's headsail set up and a Flachspüler are shithouse ideas.
Thank-you, thank-you, i will be here all week.
Thank-you, thank-you, i will be here all week.
you've been waiting 14 years to drop that little nugget, haven't ya?
mathystuff
Super Anarchist
- 1,251
- 886
You put the Scheiße into the Flachspüler to inspect it.
silent bob
Super Anarchist
Ease the sheet.
ignoring stupid people is easy
- 21,001
- 2,671
Didn't take long for this thread to turn to shit...
